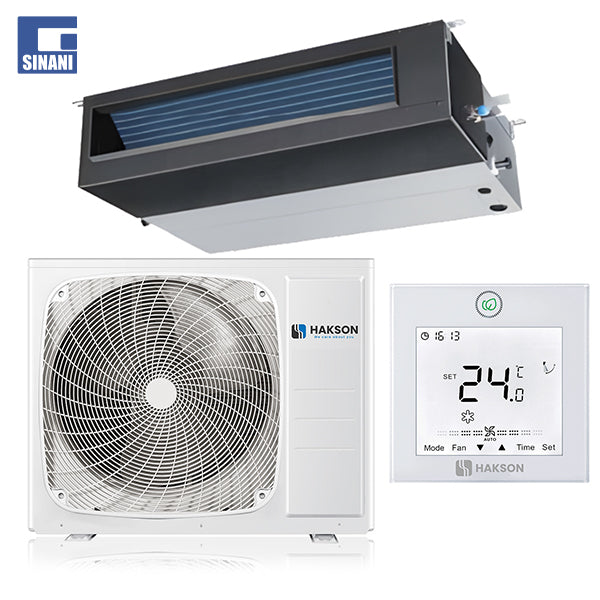

Kondicioner kanalor Ducted Medium Pressure
Hakson
Hakson
Kondicioner kanalor
Ducted Medium Pressure

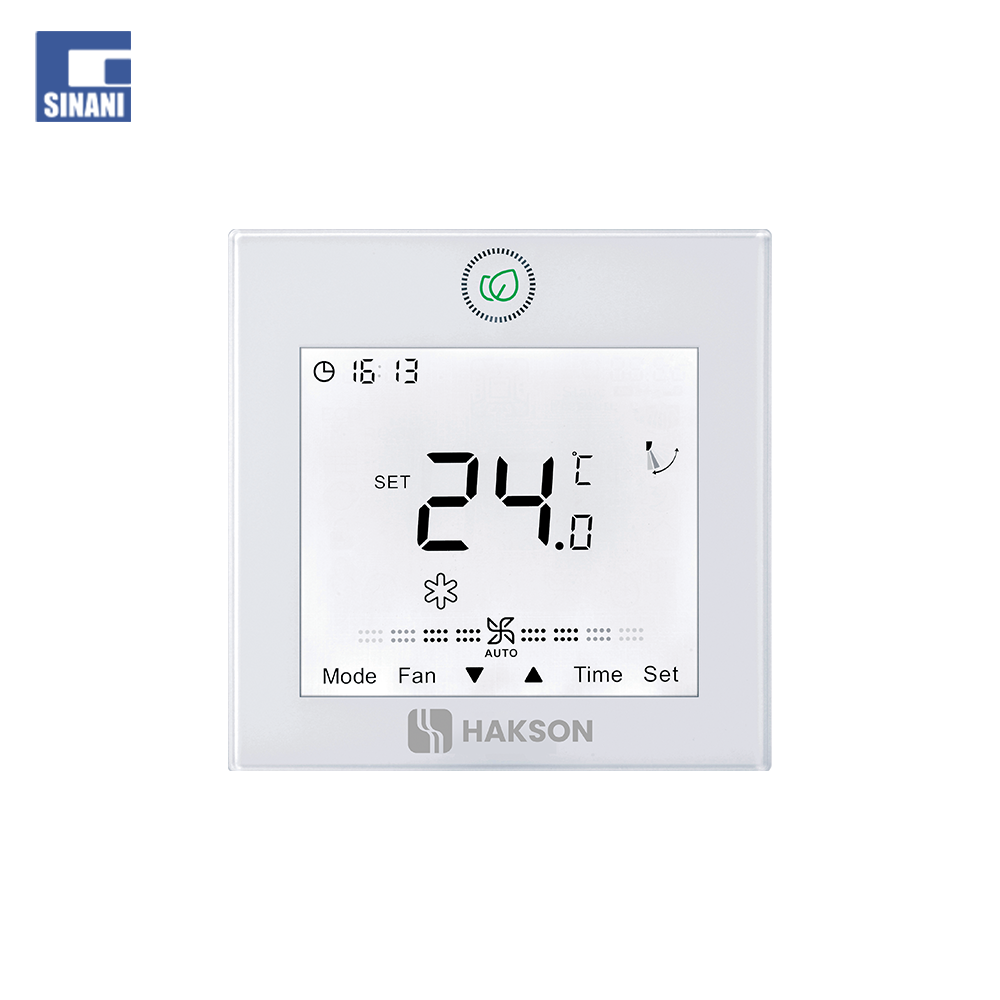

Komande Muri
Skeda Teknike:
|
Modeli |
Ducted Medium Pressure |
Ducted Medium Pressure |
Ducted Medium Pressure |
|

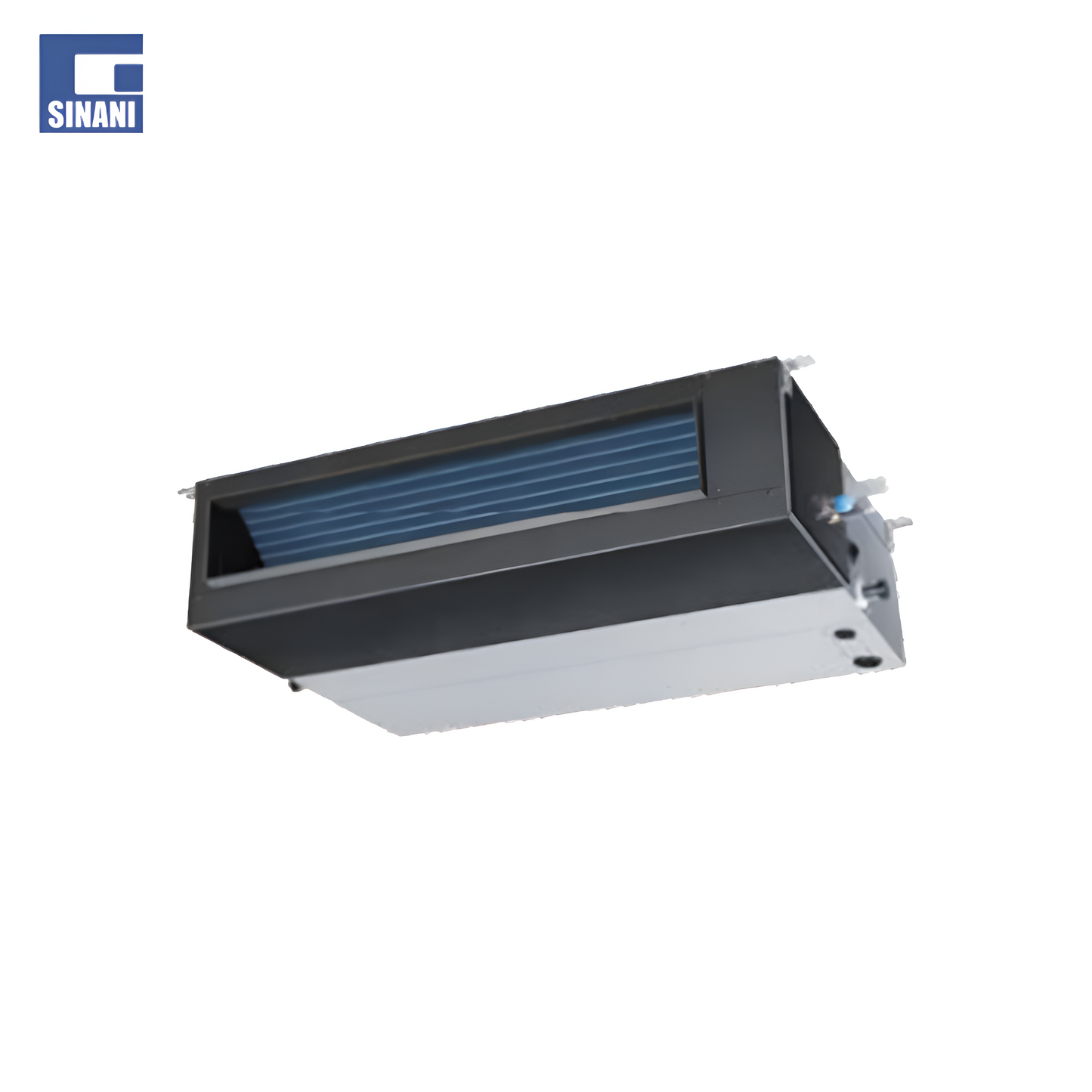

Njesia e brendshme |
DMP105IDU3F |
DMP125IDU3F |
DMP140IDU3F |
|

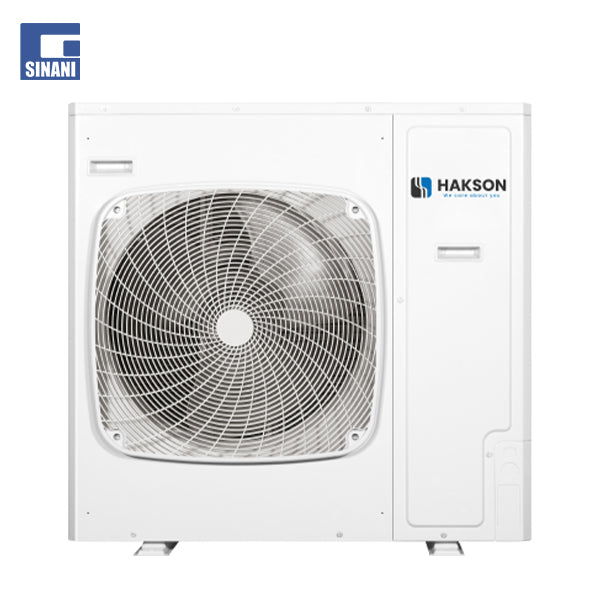

Njesia e jashtme |
LCAC105ODU3F |
LCAC125ODU3F |
LCAC140ODU3F |
|
Fuqia Btu/h |
36000 |
42000 |
48000 |
|
Klasi i energjise (ftohje/ngrohje) |
A+/A |
A+/A |
A+/A |
|
Njesia e brendshme |
DMP105IDU3F |
DMP125IDU3F |
DMP140IDU3F |
|
Rrjedha e ajrit (H/M/L/Q) m3/h |
1600/1480/1360/1240 |
2250/1960/1680/1500 |
2500/2160/1780/1500 |
|
Niveli i fuqisë së zërit (H) dB(A) |
64 |
65 |
66 |
|
Dimensionet e jashtme (W/D/H) mm |
1500/700/248 |
1500/700/248 |
1500/700/248 |
|
Dimensionet e paketimit (W/D/H) mm |
1711/870/325 |
1711/870/325 |
1711/870/325 |
|
Neto/pesha e transportit kg |
46/55 |
48/57 |
48/57 |
|
Njesia e jashtme |
LCAC105ODU3F |
LCAC125ODU3F |
LCAC140ODU3F |
|
Rrjedha e ajrit (H) m3/h |
3500 |
4200 |
4200 |
|
Niveli i fuqisë së zërit (H) dB(A) |
68 |
72 |
72 |
|
Dimensionet e jashtme (W/D/H) mm |
920/372/765 |
950/370/965 |
950/370/965 |
|
Dimensionet e transportit (W/D/H) mm |
1036/478/820 |
1050/485/1130 |
1050/485/1130 |
|
Neto/pesha e transportit kg |
60/65 |
85/90 |
85/90 |
|
Lloji i kompresorit |
Twin rotary |
Twin rotary |
Twin rotary |
|
Lloji ftohësit |
R32 |
R32 |
R32 |
|
GWP |
675 |
675 |
675 |
|
Temperatura e punës Ftohje (Min-Max) |
-20~46 °C |
-20~46 °C |
-20~46 °C |
|
Temperatura e punës Ngrohje (Min-Max) |
-20~24 °C |
-20~24 °C |
-20~24 °C |
